|Available Color||Full Midnight Black|
|Material||Appearance: Mesh, Synthetics; Case body: Steel|
|Dimension||252 x 530.5 x 579 mm / 9.9 x 20.9 x 22.8 inch|
|Weight||10.5kg / 23.1 lb|
|M/B Type||Micro-ATX, ATX, E-ATX|
|5.25" Drive Bay||3|
|3.5" Drive Bay||8 (hidden:6, X-Dock:2)|
|2.5" Drive Bay||9 (6 are converted from 3.5" bays, X-Dock x 2, 1 is behind the M/B tray)|

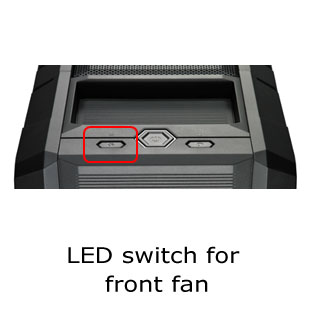

|I/O Panel||USB 3.0 x 2 (int.), USB 2.0 x 2, Audio In & Out x 1
(supports HD Audio), LED switch for the front fan
|Cooling System||Front: 200mm Red LED fan x 1
(converted to 120mm fan x 2 / 140mm fan x 1)
Top: 200mm fan x 2 (1 is optional; converted to 120/140mm fan x 2)
Rear: 140mm fan x 1 (converted to 120mm fan x 1)
Side: 200mm fan x 1 (optional; converted to 140mm fan x 2)
HDD: 12025mm fan x 2 (optional)
|Power Supply||Standard ATX PS2 / EPS (optional)|
|Maximum Compatibility||VGA card length : 354.0 mm / 13.9 inch (with HDD cage)
463.0 mm / 18.2 inch (without HDD cage)
CPU cooler height: 196.0 mm / 7.7 inch
The design quality, implemented features, styling choices, they are all of the highest quality. In fact, Cooler Master may be careful, making a case this good may actually hurt the sales of their more expensive products."
The wire management solution installed is very good, especially with the PSU cover that helps hide wires from view, making the installation look even cleaner! This was a very cool idea implemented into the HAF XM by Cooler Master. The almost all tool-free installation helped make the installation quick and easy. In case you are an upgrade junky, this will help you get in and out of your case in no time at all. The dist filters are not the best, but good enough to keep a lot of the dust from infiltrating your system."
"Cooler Master hit the bull's eye with the HAF XM. It is a high-end case at an affordable price. We simply couldn't find anything negative to say about it."
"This mid tower case features support for up to four 200mm fans, a latched side panel, two external hot swap X-Docks, 3-way SLI or CrossFire support and dust filters on every intake!"
"The HAF XM’s interior is rife with cable routing options and it even comes with a unique power supply cable baffle which successfully covers the spider’s nest of wires typically located at the bottom of most cases. Cooler Master has also seen fit to include a pair of 200mm fans, plenty of potential locations for a water cooling setup, USB 3.0 compatibility, a neatly hidden 2.5” mount and support for E-ATX motherboards. "
"The latest addition to the HAF lineup is a real winner. With support for nearly any configuration you could want to put in a midtower case, there’s almost nothing you can’t do in the HAF XM. Three video cards? No problem. Watercooling? Bring it on. Enough fans to start a small hurricane? It can handle them. With a good amount of room to work, easy cable management, and support for nearly any setup you could want it’s hard to pick out something you can’t do with this case."
"The Cooler Master HAF XM could be the ideal case for gaming on a moderate budget. With ease the case will hold any of today’s gaming video cards as well as numerous drives and we can forget about support for eATX motherboards. These three things is what makes up most of the components of a gaming system.
When considering a case to build upon, it usually begins with looks as we don’t want to be looking at a case all day they we did not like. And the CM HAX XM is really not a bad looking case. Are there better looking towers out there? Sure there are. But we do like the fact that the HAF XM offers a more subtle look than the rest of the HAF line-up. This helps the XM to crossover to other realms and not just for building a gaming rig.
As far as cooling is concerned we thought out of the box the fans that are included was adequate. A rear 140mm and two more 200mm fans in the top and front allows a fair amount of air to enter and enough pushing tower to allow generated warm air to escape. Additional sizes ranging from 120mm to 200mm can be implemented into the case for those that want more cooling and air movement. Even water cooling can be added to the equation. With a little creativity dual and triple rads can be XM for even better CPU and GPU cooling."
