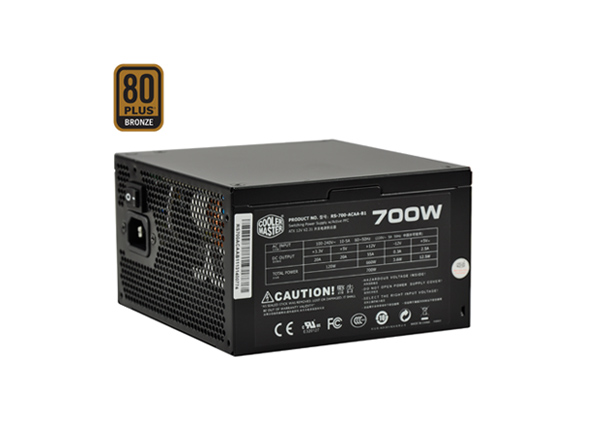

i700
RS700-ACAAB1-US; RS-700-ACAA-B1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Operating on a powerful single +12V rail system, i Series makes itself perfectly suited for powering graphics cards and other demanding system components. This is achieved through the inclusion of higher quality components and process improvements that allow for high efficiency of 85% or more that results in increasing each models overall value for users.
  • Single +12V rail provides ample power and strong resistance to any overloading
  • Compliance with Intel ATX12V V2.3
  • Dual protection from electromagnetic interference
  • Intelligent Fan Speed Control
  • Multiple Protection Design (OVP/OCP/OPP /SCP)
  • More than 85% efficiency at typical load operation
  • High reliability (MTBF > 100,000 hrs)





Specs

Model RS700-ACAAB1-US; RS-700-ACAA-B1
Type lntel ATX 12V V2.3
PFC Active PFC (>0.9 typical)
Dimension 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Range Auto range
Input Voltage 90-264Vac
Input Frequency Range 50-60Hz
Fan 120mm
Efficiency >85%@ Typical Load
MTBF >100,000 Hours
Protection OVP / OCP / OPP / SCP
Operation Temperature 0~40°C
Regulatory CE, UL, FCC, CCC
Connector MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 9
4Pin Peripheral x 3
4Pin Floppy x 1
Warranty 5 years
UPC Code 884102020353
