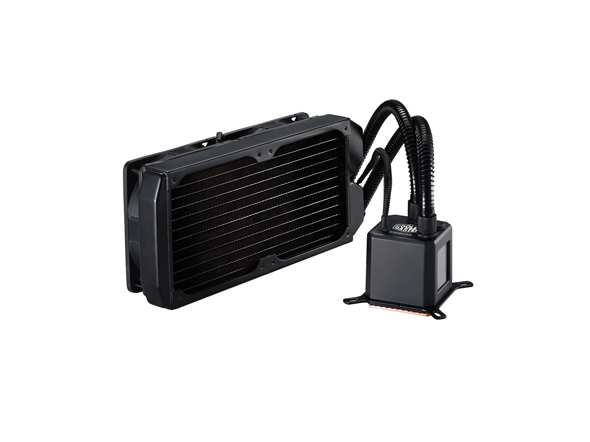

Eisberg 240L Prestige
RL-EB24-16FK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Eisberg is a German designed water cooling system with outstanding cooling performance and great durability. The Micro Channel Technology provides more contact area between coolant and copper base and improves cooling performance. The other unique Jet Stream Technology offers turbo injection of water inside the waterblock and provides optimal speed and pressure of water flow.

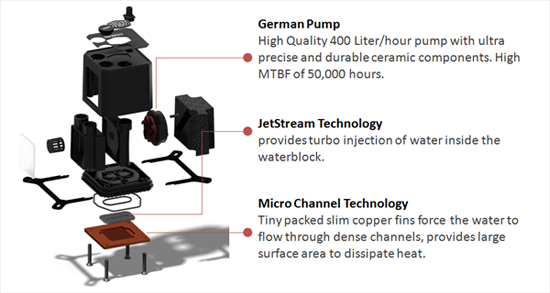

Micro Channel Technology

Tiny tightly packed slim copper fins force the water to flow through countless little channels, resulting in a much higher waterblock surface area and faster heat transfer from the copperblock to the water.
JetStream Technology

By limiting the waterflow to a thin opening, the jet-plate focuses the waterflow onto the center of the waterblock and forces it to flow outwards through the micro channels at a very high speed.
Eisberg Core

DIY cutomers will be excited to hear that the system is expandable. Additional radiators waterblocks and pumps can be added to EISBERG loops with relative ease. On top of that, the Eisberg core module housing the waterblock, pump, and reservoir will be available for purchase separately.
Pure Copper Radiator

Cooper is more expensive, but transfers heat faster than aluminum, and doesn't corrode when exposed to a waterloop with a copper waterblock. That's why you won't find aluminum radiators in enthusiast DIY watercooling systems.


  • German designed pump provides stable and strong water pressure
  • JetStream Technology – provides turbo injection of water inside the waterblock
  • Improved cold plate design:
    • Large Micro Channel contact area
    • 100% copper
    • Fine cut Jet Plate
    • Integrated pump and waterblock
  • Easy installation with Eisberg mounting kit





Specs

Model RL-EB24-16FK-R1
CPU Socket Intel Socket:
LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775

AMD Socket:
FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Fan Dimension 4.72 x 4.72 x 0.98 inches
120 x 120 x 25 mm
Fan Speed 1600 rpm
Fan Airflow 60.2 CFM / 102.5 m3/h
Fan Noise Level (dB-A) 20.5 dBA
Connector 3 pin
Radiator Dimensions 11.02 x 4.88 x 1.18 inches
280 x 124 x 30 mm
Pump Dimensions 2.59 x 2.60 x 2.64 inches
65.71 x 66.00 x 66.95 mm
Pump Bearing Type Ceramic Pipe and Axis
Pump Q-max 400 Liters an hour
Pump Noise Level <25 dBA
Pump Life Expectancy 50,000 h
Pump Speed 3600 rpm @12VDC
Tube Dimensions 10 / 8 mm – 16"/5,0" ID + Hose Wrap
Notice 100% Copper Radiator
100% Copper Cold Plate
Warranty 2 years
UPC Code 884102018138
