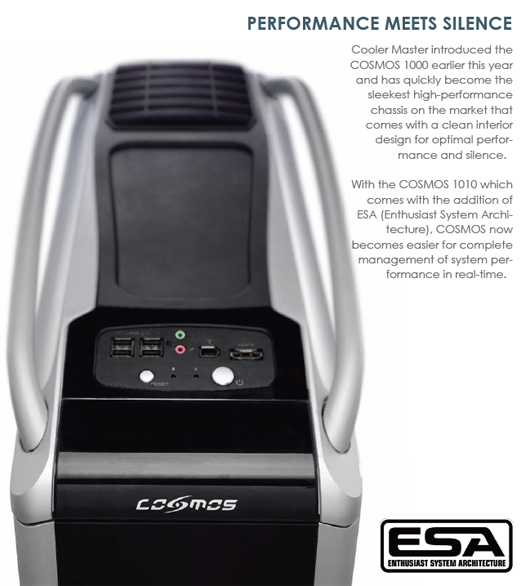

Cosmos 1010 ESA
RC-1010 (Discontinued)


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Sound Proof Environment:
> Sound proof materials for a silent system
> Sound barrier design reduces vibration for silent operation

Thermal Management:
> Dual bottom air intakes to enhance airflow and reduce system noise
> Six aluminum detachable HDD modules with ventilation holes for optimized cooling performance

ESA-compliant Chassis:
> Real-time and complete PC performance management and optimization
> Manage and tune thermal, electrical, acoustic and operating characteristics to maximize your PC's performance

Tool-free User-friendliness:
> Patented finger pressing buttons for quickly maintaining or upgrading 5.25” drive devices
> Tool-free design for opening side panel conveniently

Cable Management
> Separate HDD modules make it easy to organize cable direction
> Cable management system for better cable routing and neatness
Innovative Thermal Solution
Enthusiast System Architecture (ESA)
> Thermal controller board behind the front panel for adjusting the fan speed intelligently
> Built-in LED error detector
> Thermal controller board has four thermal sensors to monitor the hardware

All case fans with PWM function to optimize the thermal performance


Aluminum HDD Trays
Using stack effect, aluminum HDD trays optimizes cooling performance. An extra fan can be installed to enhance the airflow of HDD module


Exhaust Ventilation
> Three 120mm exhaust PWM fans are equipped on the top and rear
> Retaining holes on the top support the installation of dual 140mm fans
> Retaining holes in the rear for liquid cooling kit
 Air Intake System
> Dual bottom air intakes to draw in cool air and reduce system noise
> Air filters can isolate dust effectively
120 mm bottom PWM fan provides the maximum airflow and air pressure



One Side-mount 120mm PWM fan to optimize the thermal performance

Tool-free Build
Tool-free kit for side panel installation
Patented finger pressing buttons for quickly maintaining or upgrading 5.25" drive devices
Detachable aluminum HDD trays for quick maintenance and upgradeability
Cable Management System
Tidy cable routing and neatness
Front IO Panel
IO Panel on the top for easy access
USB2.0 x 4, SPK x 1
MIC x 1, eSATA x 1
(Support Intel HD Audio)

Specs

Model RC-1010
Available Color Chassis Appearance: Silver, Bezel: Black
Dimension (W) 266 x (H) 598 x (D)628 mm
Weight Net Weight : 37.2 lbs ; Gross Weight : 41.5 lbs
Material Chassis: Steel, Appearance: AL
Motherboards Extend ATX, ATX
5.25" Drive Bay 5 Exposed (without the use of exposed 3.5 inch drive bay)
3.5" Drive Bay 6 ( Hidden ) ; 1 Exposed (converted from one 5.25 inch drive bay)
I/O Panel USB 2.0 x 4, IEEE 1394 x 1, Audio x 1, SPK x 1, eSATA x 1(Support HD Audio)
Cooling System Bottom fan ( intake ) :120x120x25 mm x 1, 2024 rpm, 17 dBA (included),
Top fan (exhaust) : 120x120x25 mm fan x 2, 2024 rpm, 17 dBA (included),
Rear fan (exhaust) : 120x120x25 mm x 1 (included),
HDD fan : 120x120x25 mm x 1 (optional),
Side Fan: 120x120x25 mm x 1 (included)
Expansion Slots 7
Power Supply Standard ATX PS2 / EPS 12V ( optional )
Optional Component 4-in-3 Module / Fan Bracket
Other Tool Box
