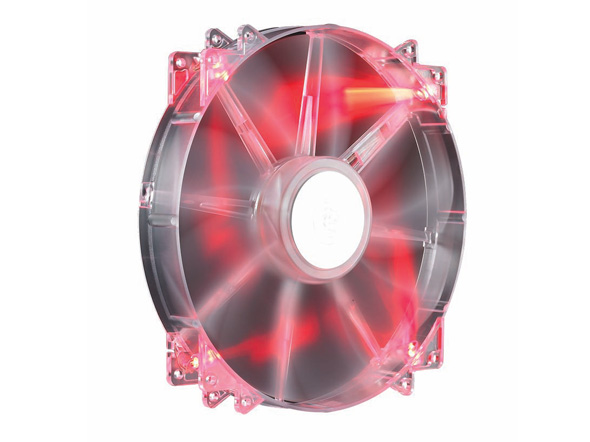

MegaFlow 200 Red LED (R4-LUS-07AR-GP)
R4-LUS-07AR-GP


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description


With the constant development of hardware getting better and better, the energy consumption of your computer rises because you want to get the full performance. Due to this the heat increases and so the requirements of your fan rise as well. To integrate several fans is not the right solution because your computer will get very, very noisy. Bigger fans are the optimal solution for modern high-tech systems. The MegaFlow fan has a diameter of 200mm and so it has a displacement volume of 184 m3/h - twice the volume of 140mm fans.
  • 700RPM 110 CFM High air flow for maximum cooling performance.
  • Quiet operation with low RPM.
  • RoHS compliance for protecting the environment.
  • Compatible with 230mm HAF mounts for easy upgrades.
  • Cosmos S
  • HAF 932
  • HAF 922
  • ATCS 840
  • CM Storm Sniper

Recommended as a replacement or additional fan for:

HAF 932, HAF 922*, HAF 912 Plus, COSMOS S, ATCS 840, CM Storm Sniper*

*Fan and LED will operate but full LED ON/OFF function will not be compatible

Specs

Model R4-LUS-07AR-GP
Dimension 200 x 200 x 30 mm
Speed (R.P.M.) 700 RPM
Air Flow (CFM) 110 CFM
Air pressure (mmH2O) 0.595 mm H2O
Noise Level 19 dBA
Bearing Type Sleeve Bearing
Fan Life Expectancy 30,000 hrs
Rated Voltage 12 VDC
Current (Ampere) 0.16 A (Max 0.28 A)
Power consumption 3.36 W
Weight 266 g; 0.59 lb
Connector 3 Pin
3 to 4 pin Adapter 1 pcs
Color Red LED
Screws 4 pcs
Warranty 1 year
UPC Code 884102004001
