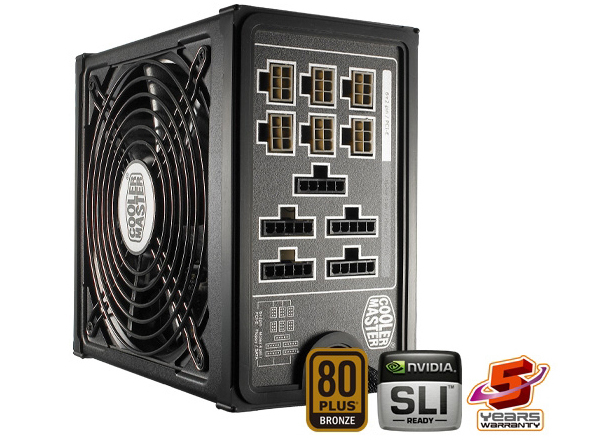

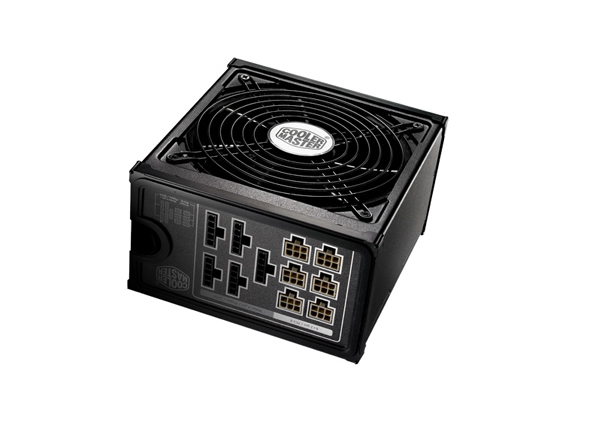

Silent Pro M 850W
RS850-AMBAJ3-US / RS-850-AMBA-J3


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and won’t have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorption silicon pads to remove possible vibrations.

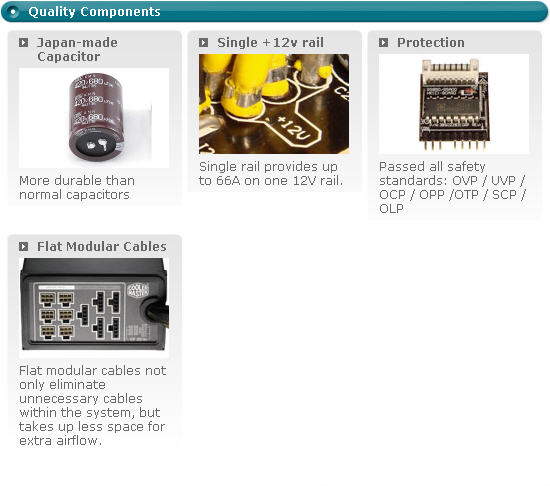

  • Copper plus aluminum heatsink for efficient heat dissipation.
  • Japanese-made capacitors to enhance PSU outputs stability.
  • Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92.
  • Flat modularized cables to eliminate the clutter and improve airflow inside the chassis.

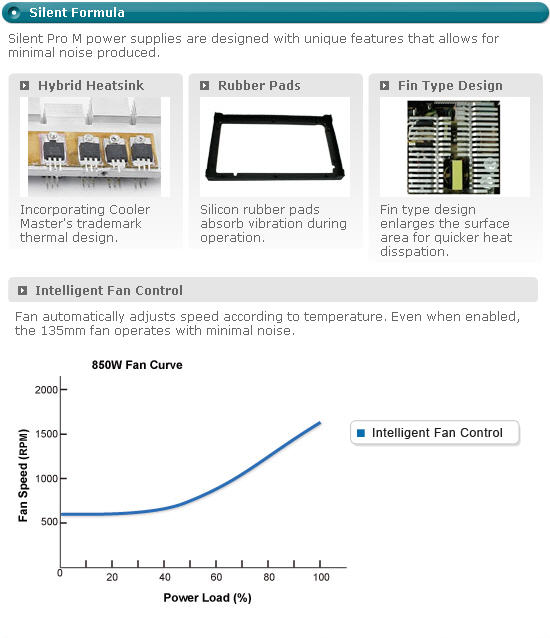

  • Ultra-silent operation with intelligent 135mm fan speed control.
  • Unique silicon pad eliminate the vibration.
  • Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%).
  • Single +12V rail for up to 80A for high demanding SLI.





Specs

Model RS850-AMBAJ3-US / RS-850-AMBA-J3
Type Intel ATX12V V2.3 SSI EPS 12V V2.92
Dimension 5.91(W) x 3.39(H) x 6.5(L) (inches)

150(W) x 86(H) x 165(L) (mm)

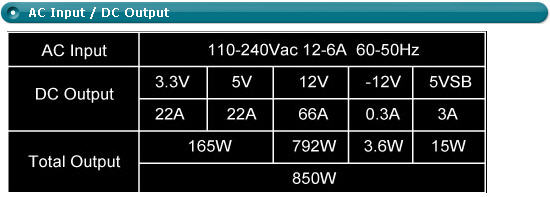

Input Voltage 90~264V (Auto Range)
Input Current 12A@115Vac, 6A@230Vac
Input Frequency Range 47~63Hz
PFC Active PFC >0.9
Power Good Signal 100~500ms
Hold Up Time >17ms

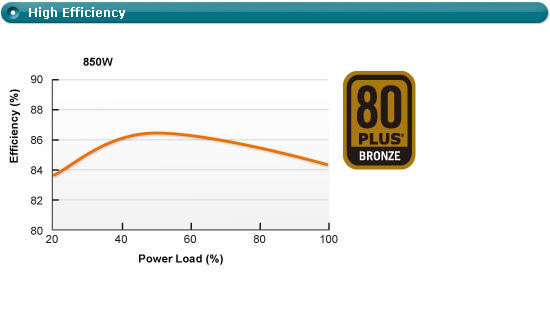

Efficiency 85% Typically
MTBF >100,000hrs
Protection OVP/ UVP/OCP/OPP/OTP /SCP
Output Capacity 850W
Max. Output Capacity 1020W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI
Fan 135mm ultra silent fan
Certification SLI / 80 Plus Bronze

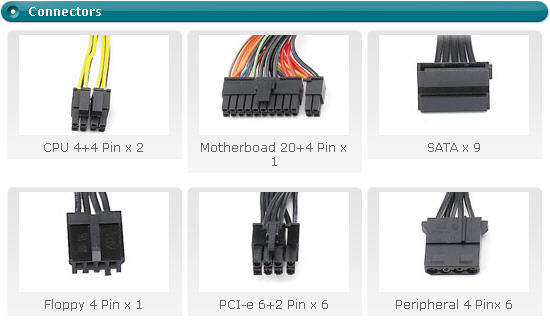

Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1
Warranty 5 years
UPC Code 884102005978
