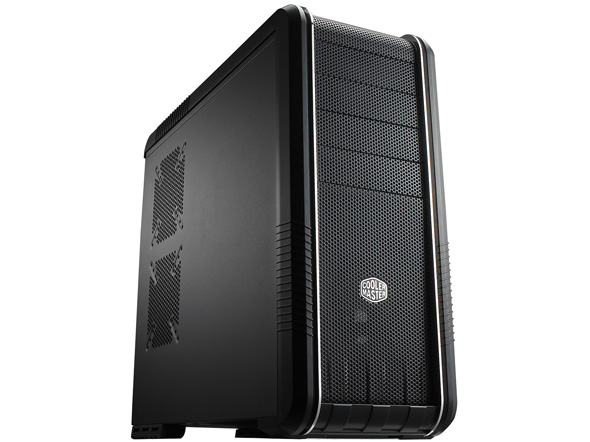

CM 690 II Basic
RC-692-KKN3 (Discontinued)


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

CM 690 II Basic raises the bar again with practical improvements over the top-selling CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 vga cards, high-end CPU coolers, and top or bottom mount water cooling radiator. It also features much improved airflow with oversized mesh and enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management and CPU cooler retention hole.


  • Oversized front and top mesh design for superb ventilation.
  • Accommodates 120 x 240 mm radiator inside the top or bottom.
  • Dust-control filters for all meshed areas.

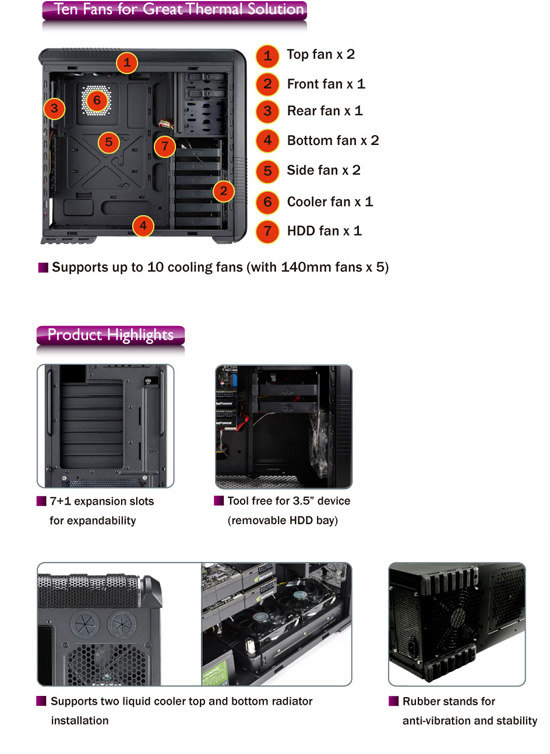

  • Air cooling support for up to 10 fans (with support for up to 5 x 140mm fans).
  • Front blue LED fan on/off switch.
  • Rear retaining holes for water cooling kit.
  • Cable management and CPU retaining hole for easy maintenance.

Specs

Model RC-692-KKN3
Available Color Black
Material Steel body / Plastic + Mesh bezel
Dimension 214.5 x 511.8 x 528.8 mm
8.4 x 20.1 x 20.8 inches
Weight Net Weight: 9.56 kg / 21.08 lbs
Gross Weight: 11.56 kg / 25.49 lbs
M/B Type Micro - ATX / ATX / Mini-ITX(supports)
5.25" Drive Bay 4 Exposed (enclosed with 2 tool-free system)
3.5" Drive Bay 6 Hidden
2.5" Drive Bay No
I/O Panel USB2.0 x 2, eSATAx 1, MIC x 1 Audio x 1
Expansion Slots 7 + 1
Cooling System Front: 120 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 dBA
Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
Top: 120 / 140 mm fan x 2 (optional)
Bottom: 120 mm fan x 2 (optional)
Right side: 120 / 140 mm fan x 2 (optional)
Left side: 80 x 15 mm x 1 (optional)
HDD cage: 120 mm fan x 1 (optional)
VGA holder: 80 x 15 mm fan x 1 (optional)
Power Supply Standard ATX PS2 / EPS 12V (optional)
VGA Holder No
HDD Dock No
HDD Fan Yes
Liquid Cooling Supports Top and Bottom
Liquid Cooling Retaining Hole Yes
CPU Retaining Hole Yes
Removable HDD Cage Yes
SLI Supports Triple VGA (without VGA holder)
UPC Code 884102008207
  • +
    • Click logo to read full review:
      rwlabs.com
      rwlabs.com : August 2010


      "The Cooler Master 690 II Basic definitely does its predecessor justice.  With clean, understated lines, excellent functionality, and solid build quality this case definitely carries on the high reputation of the 690 line.  Cable management is a breeze, and it can make just about anyone look like a building pro."

      » Details
      Bayreviews.com
      Bayreviews.com : August 2010


      "The Cooler Master CM 690II is a great case that should last a long time. I would highly recommend the Cooler Master CM 690 II to anyone in the market for a mid-tower case."

      » Details
      Techarkade: Golden Ghost Award
      techarkade.com : June 2010


      "The Cooler Master CM690 II Basic Edition case is a full tower case shrunken down to a mid tower size. There is just a ton of room on the inside, which made for an easy, almost flawless, install. Apart from the requirement of having to remove the front panel to install 5.25" bay devies, the mounting process was a breeze."

      » Details
      Hitechlegion.com: Editors Choice
      Hitechlegion.com : May 2010


      "The Cooler Master 690 II Basic had great intrinsic cooling which was exceptionally quiet. The temperatures were kept at reasonably low and with the option of adding many more fans, this case would become even better at cooling all the components of your desktop system."

      » Details
      Umlan.com: 10/10
      Umlan.com : April 2010


      "CM 690 II Basic is a very well designed case and it is definitely leaves a great first and after impression. Providing its users with ease of use and fast installation, CM 690 II Basic becomes and no brainier pick in the store."

      » Details
      Techreaction.net: Gold Silicon Award
      Techreaction.net : April 2010


      "Everything went in without a fuss and as you can see we can easily install a 5870 or any of the new GTX series from Nvidia."

      » Details
  • +
