HAF X nVidia Edition
NV-942-KKN1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

The much anticipated HAF X arrives with NVIDIA edition as the flagship of the popular HAF (High Air Flow) series. Designed for performance systems, this chassis is able to house today’s latest and hottest CPUs, motherboards, graphics cards, and is even compatible with USB 3.0 devices. Certified by NVIDIA with specialized support and cooling for graphics cards, massive airflow with the help of up to four gigantic fans, and easy access to installed components, this is as close as it gets to a system builder’s ‘dream case’.


Features:
  • SATA Dock for easy installation without the need of removing side panel.
  • USB 3.0 on front I/O panel.
  • Air duct to cool the latest graphics cards.
  • Up to 1 x 230 mm green LED fan and 3 x 200 mm fans.

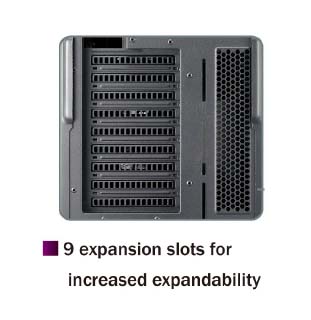

  • 9 slots support triple VGA cards.

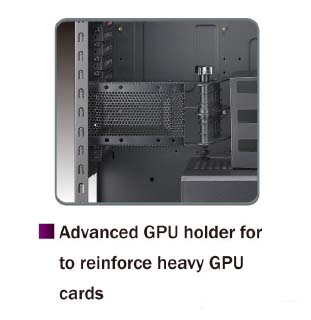

  • Adjustable VGA card holder to support heavier GPU cards.
  • Power supply partition to conceal cables.
  • Advanced cable management with rubber grommets.
  • Spacious interior for larger component parts.
  • Rugged black coated interior.















Specs

Model NV-942-KKN1
Material Steel and Plastic
Dimension 9.1 x 23.6 x 21.7 inches
Weight Net: 31.6 lbs; Gross 35.5 lbs
Motherboards Micro-ATX / ATX / E-ATX / XL-ATX
5.25" Drive Bay 6
3.5" Drive Bay 5 Hidden (2 in 1, 2.5" and 1.8" SSD Drive Support)
2.5" Drive Bay 2 (converted from 5.25" drive bay)
I/O Panel USB 3.0 x 2, USB 2.0 x 2, Audio x 1, Mic x 1, e-SATA x 1, 1394a x 1
Cooling System Front: 230x30mm green LED fan with LED switch x 1 / 700RPM / 19dBA / 110CFM

Top: 200x30mm fan x 2 / 700RPM / 19dBA / 110CFM (one optional)

Side: 200x30mm fan x 1 / 700 RPM / 19dBA / 110CFM

Rear: 140x25mm fan x 1 / 1000RPM / 19dBA 61CFM

VGA Fan Duct: 120x38mm fan x 1 / 2300RPM

VGA Holder: 80x15mm fan x 1 (optional)
Expansion Slots 9
Power Supply Bottom-mounted / ATX PS2 / EPS 12 V optional)
Warranty 2 years
UPC Code 884102010248
