Elite 343
RC-343-KKN1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

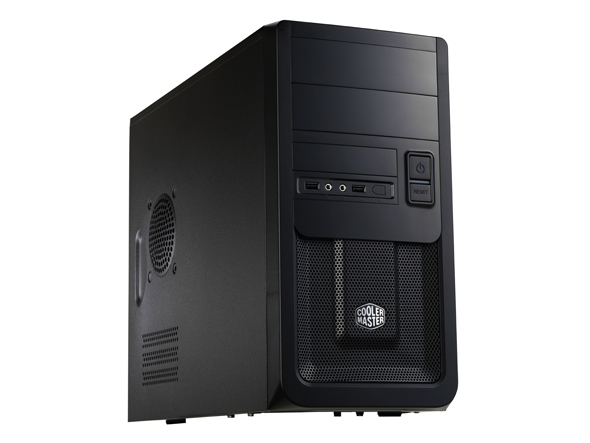

Elite 343 (RC-343) is a mini-tower that accommodates micro-ATX, built with a modern black design body and front panel. This chassis maintains Elite’s pedigree of compact-sized and quality build that would look great in any space. Elite 343 maintains a quiet environment while providing the option of adding 80mm or 90mm rear fans to provide the best ventilation possible for a compact system.



  • Front mesh design provides superior ventilation to maintain constant cooling
  • Front I/O panel provides easy access for users
  • Side panel security lock hole for higher security
  • Side ventilation holes for better cooling performance
  • Front 120 mm fan provides the best cooling solution
  • Removable HDD cage

Specs

Model RC-343-KKN1
Available Color Black
Material Steel Body ; ABS plastic ; Mesh Front bezel
Dimension 180 x 352 x 440 mm / 7.08 x 13.85 x 17.32 inches
Weight Net Weight: 4.0 kg/ 8.84 lbs
Gross Weight: 5.1 kg / 11.24 lbs
M/B Type Micro-ATX
5.25" Drive Bay 2 Exposed
3.5" Drive Bay 5 Hidden
1 Exposed
I/O Panel USB 2.0 x 2 , Spk x 1 , Audio x 1 , IEEE 1394a (optional) , e-SATA (optional)
Expansion Slots 4
Cooling System Front: 120 x 25mm fan x 1 / 1200 RPM / 17 dBA (pre-install) ; 80mm / 90mm (optional)
Rear: 80 / 90 mm fan x 1 (optional)
Power Supply Standard ATX PS2 (optional)
Maximum Compatibility CPU Cooler height: 148 mm
VGA Card length: 250 mm ( wtih HDD cage ) / 363 mm ( remove HDD cage )
Warranty 2 years
UPC Code 884102010750
