Silent Pro Hybrid 1300W
RS-D00-SPHA-D3; RSD00-SPHAD3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.


Silent Pro Hybrid Series, built for the those in need of high power that includes plenty of options for customization and noise control. Fully modular cables, extended cable lengths, exclusive built-in fan power ports, and an included 5.25” bay mountable fan controller make the Silent Pro Hybrid Series a superb choice for builders. This power supply series carries a 80 Plus Gold Certification.
You must have Flash Player? 8 or above to view this content.

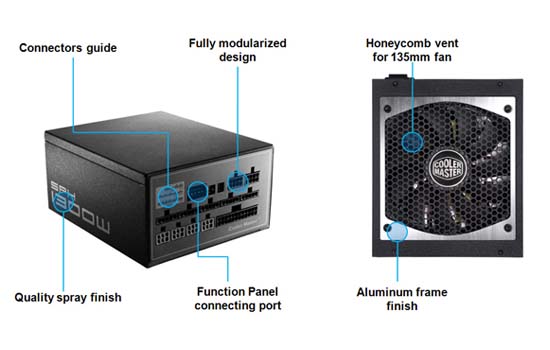

Fully Modular Cables
Flexibility of using only the cables needed for a cleaner system build

Silent Operation
135 mm Hydraulic Dynamic Bearing Fan for quieter operation

Function Panel Fan Speed Control
5.25”control panel for 135mm PSU and three system fans

Switchable Automatic / Manual mode Fanless Mode: Fanless operation with 135mm fan is at 0dB when loading is under 200W
Manual Mode: PSU fan speed can be adjusted manually from 3V-12V

Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 105A.

Double-Layer EMI Filter Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.



Unique Patented Technologies:
Hybrid Transformer™:
Specially design transformer to improve thermal and efficiency.
Patent design transformer mount with heat sink, the size was reduced by up to 25% than the traditional transformer providing lesser energy consumption, while conducting the heat for better overall efficiency.

HTT™ - Heat Transfer Technology:
Patent design “L” shaped heat sink layout.
This technology helps to guide the air flow along the heat sink to improve the air circulation for maximum performance.

Hyper Path™:
Patent design hyper link between IC and the relative components.
Patent energy conversion design path provides super efficient connection from the transformer to components. The signal can be transfer directly without any energy loss.

Intel Compliant ATX12V v 2.3 and EPS version 2.92 compliant.

Active PFC+ PWM Combo Controller Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.

Japanese Capacitors
High quality capacitors protecting equipment from capacitor leakage problem, also increasing the life-span of your equipment, especially at high temperatures.

Eco-friendly design: Erp Lot6 Ready!
A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode

Supports 4-Way SLI / CrossFire + Dual CPUs.
Able to run toughest rig with 4-way GPUs and dual CPUs without any hassle.

And More
Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
Multiple Protection Design (OVP / UVP / OCP / OPP / OTP / SCP)
High reliability with an MBTF of at least 100,000 hours of use.
Five Year Warranty.






Model RS-D00-SPHA-D3; RSD00-SPHAD3-US
Type Intel ATX 12V V2.3 & SSI EPS 12V V2.92
Dimension 150 x 180 x 86 mm
5.9 x 7 x 3.4 inch
Input Voltage 90-264V (Auto Range)
Input Current 12-6A
Input Frequency Range 47Hz-63Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time 17ms
Efficiency 90% Typically
MTBF 100,000 Hours
Protection OVP / UVP / OCP / OPP / OTP / SCP
Output Capacity 1300W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / GOST / CE / C-Tick / UL / BSMI / CCC / FCC / KCC
Fan 135mm (Silent Hydraulic Bearings)
Certification 80 Plus Gold
Connector M / B 24 pins x 1
CPU 4 + 4 pins x 2
PCI-e 6+2 pins x 8
SATA x 12
Peripheral 4 pins x 5
Floppy 4 pins x 1
Fan cable 3 pins x 3
Warranty 5 years
10 years (USA ONLY)
UPC Code 884102012082
  • +
    • Click logo to read full review:
      RWLabs: Editors Choice
      rwlabs.com : December 2012


      "The Build quality and features of this unit were outstanding you really will have a hard time finding something else on the market that has anything close to what the Silent Pro Hybrid offers. I mean come on, name another power supply that comes with a fan controller?

      Voltage regulation of this unit was very impressive and one of the most stable I have ever seen personally. The 12v line only had 32mv of ripple throughout testing while the 5v and 3.3v lines stayed well within spec at 4.99 and 3.29v at the end of testing. Efficiency bottomed out at 89% and managed a steady 90% throughout most test loads."



      » Details
      Tweaktown.com: Must Have Editors Choice
      tweaktown.com : April 2012


      "The Silent Pro Hybrid 1300-watt power supply is an incredible unit even before you figure in the cost.  After taking that into consideration, it quickly becomes a no-brainer that this power supply is one of the best available."

      » Details
      Hitechlegion.com: Gold
      Hitechlegion.com : March 2012


      "There is no question that the Silent Pro Hybrid is an absolute bruise on the power end of things, but it also happens to be 80+ Gold rated, meaning that the efficiency is there, right along with the power. A bevy of connection options means that almost any conceivable build can be effectively powered without any additional cable clutter for a clean install. The Silent Pro Hybrid is very well put together, and actually has a very attractive metal flake finish and aluminum accents to keep the inside of your case looking good without being garish. The optional fan controller and fan ports are a great touch on the Silent Pro Hybrid, and a simple idea that should have been addressed long ago (kudos to Cooler Master for an obvious and useful addition). Cable options are excellent, and many will find the flat cables an excellent routing option, especially in cases that are tight behind the MB tray."

      » Details
      Overclockers.com: Approved
      Overclockers.com : January 2012


      "I’m very pleased to see the pair of 7 V fan power connectors, this is a feature that I don’t believe anybody else has started offering and is very useful for people who want nice quiet PCs. The fan controller works well, though full speed is only 10 V. It can drive quite juicy fans however and looks quite nice."

      » Details
      Engadget.com
      Engadget.com : October 2011


      "Cooler Master's Silent Pro Hybrid Fanless series is actually pretty alluring. The supply isn't actually "fanless" but it does have a fanless mode that can be used to minimize machine noise, at least until the load crosses the 200W threshold. Add to that a 90-percent efficiency, fully modular cables and a control panel that lets you manually adjust the speed of your system fans and you're looking at quite the compelling product for the DIY desktop enthusiast."

      » Details
  • +
  • +
  • +
