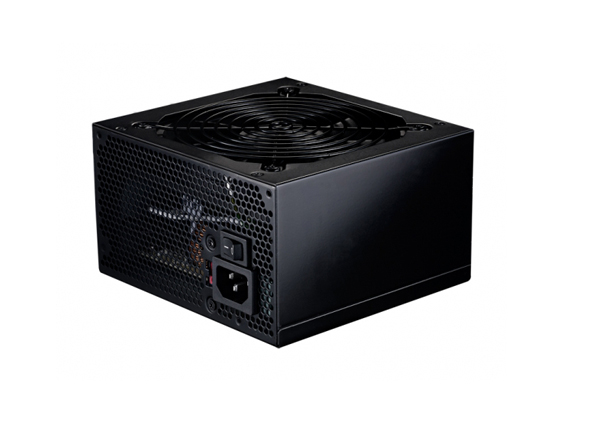

Extreme 2 625W
RS625-PCARD3-US; RS-625-PCAR


Disclaimer: Displayed parts and accessories may not be included in the actual product package.


Equipped with multiple technological improvements over its predecessor, Extreme II offers overlapping safety measures through multiple over power protections. It features two powerful +12V rails ensure clean and efficient delivery of power and high quality capacitors that are heat resistant to temperatures up to 105C. Extreme II offers you more power and value with higher wattage and amperage output and combines this with the peace of mind that comes from a reliable 3 year warranty.

  • Safe - through Multiple Over Power Protections
  • Powerful - Dual +12V outputs for higher power usage
  • Durability - High quality capacitor with heat resistant up to temperature 105 Celcius
  • Reliable - 3 year warranty









Model RS625-PCARD3-US; RS-625-PCAR
Type Intel Form Factor ATX 12V V2.3
Dimension 150 x 140 x 86mm (5.9 x 5.5 x 3.4 inch)
Input Voltage 110-120 / 220-240 Vac
Input Current 10 / 5A
PFC Non PFC
MTBF 100,000 Hours
Protection OVP/UVP/OCP/OPP/OTP/SCP
Certification TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC
Fan 120 mm
Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 6+2 Pin x 2
SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
Warranty 3 years
UPC Code 884102015649
