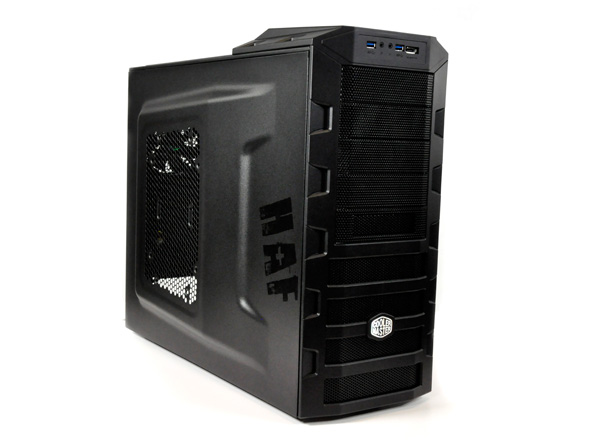

HAF 922 (USB 3.0 w/ Black Interior version)
RC-922M-KKN3-GP


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Following the overwhelming success of the full tower HAF 932, Cooler Master extends the HAF (High Air Flow) line to a mid tower in the HAF 922. This beastly chassis comes with rugged looks, massive air flow, and Cooler Master’s trademark intelligently designed interior. Building the mean, dream machine is now well within reach.



Superior Cooling Performance

Extreme cooling performance that supports up to seven cooling fans top to bottom as well as accommodate three 200 x 30mm fans at minimum noise. Spacious interior can accommodate radiator for liquid cooling system and high-end hardware.



User Friendly

* All black painted interior for aggressive looks

* LED ON/OFF switch for front 200x30mm fan.
* Patented button design for easy maintenance of 5.25” drive devices.
* Native superspeed USB 3.0
* Upgraded 200mm fans for increased airflow




Cable Management System

The cable management for HAF 922 is able to support the cables being routed through the chassis from device A to B, The motherboard tray includes cable access openings which cables can be routed in or out from the chassis, also to prevent causing damage for cables/components.



Specs

Model RC-922M-KKN3-GP
Color Black (black interior)
Dimension 10.0 in (w) x 19.7 in (h) x 22.2 in (d)
253 mm (w) x 502 mm (h) x 563 mm (d)
Weight 19.2 lbs
8.7 KG
Material SECC
M/B Type ATX / Micro ATX
5.25" Drive Bay 5 Exposed (one could convert to 3.5” drive bay)
3.5" Drive Bay 5 Hidden
1 Exposed (Converted from one 5.25” drive bay)
I/O Panel USB 3.0 x 2*, MIC x 1, SPK x 1 eSATA x 1 , Audio x 1

*USB 3.0 is internal cable, optional USB 2.0 cable is available as an accessory
Cooling System Front: 200mm fan x 1 Red LED on / off fan x1 / 1000RPM/ 142 CFM/ 23dBA

Top: 200mm fan x 1 / 1000 RPM / 142 CFM/ 23dBA (can be swapped to 120mm fan x2)

Rear: 120mm fan x 1 / 1200 RPM /17 dBA

Bottom: 120 / 140mm fan x 1 (optional)

Side: 200mm fan x 1 (optional)
Expansion Slots 7 + 1
Power Supply ATX PS2 / EPS 12V (optional)
Warranty 2 years
UPC Code 884102004766
