Seidon 120XL
RL-S12X-24PK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.


The Seidon 120XL is Cooler Master’s latest update to its incredibly compact watercooling kit that aims to bring a thick, high performance watercooler to the masses. It fits in many cases, is compatible with every available Intel and AMD platform, and as easy to install as a heatsink. It comes factory filled, sealed and tested with a two year zero maintenance guarantee. Thanks to two 120mm PWM fans with a wide RPM range and a thicker radiator with more surface area, Seidon can operate silently or unleash a powerful cooling storm at your command.

Features:
  • Closed loop design - requires zero maintenance for years.

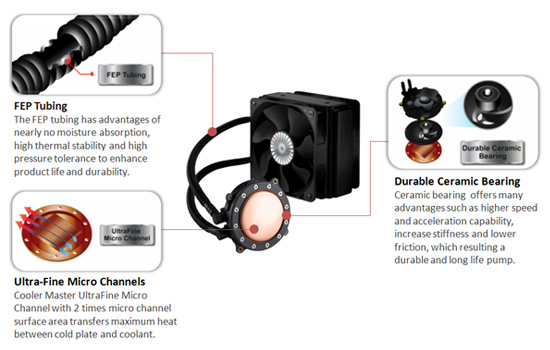

  • UltraFine Micro Channel waterblock enlarge the contact surface between cold plate and coolant.
  • Durable and powerful water pump – dissipates heat effectively through stable water circulation.
  • Performance 38mm thick radiator is designed for handling high wattage overclocked CPU.
  • Double 120mm PWM fan provides a wide RPM range to fine tune and balance fan noise and performance.














Model RL-S12X-24PK-R1
CPU Socket Intel LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775

AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Pump Dimensions ø 70 x 27mm (ø 2.75 x 1.1 inch)
Radiator Dimensions 150 x 120 x 38 mm (5.90 x 4.72 x 1.50 inch)
Radiator Material Aluminum
Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Fan Speed 600~2400 RPM (PWM) ± 10%
Fan Airflow 19.17 ~ 86.15 CFM ± 10%
Fan Air Pressure 0.31 ~ 4.16 mm H2O ± 10%
Fan Life Expectancy 40,000 hours
Fan Noise Level (dB-A) 19 ~ 40 dBA
Fan Bearing Type Rifle bearing
Fan Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A
Fan Power Consumption 3.6 W
Pump Life Expectancy 70,000 hrs
Pump Noise Level <25 dBA
Pump Rated Voltage 12 VDC
Pump Load Current 0.15 A
Pump Power Consumption 1.8W
Warranty 2 years
UPC Code 884102020032
