Elite Power 350W
RS350-PSARI3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite series is fit to handle demands of high power requirements. The eco-friendly design allows the Elite series to reach more than 70% efficiency at typical loading and meet Energy Star and Blue Angel requirements.
  • High performance components for improved reliability.
  • Eco-friendly design to meet Energy Star and Blue Angel requirements.
  • Multi-protection design (OVP/OCP/OPP/SCP).
  • Supports dual +12V1 and +12V2 outputs for high power usage.
  • One 4+4 pin +12V CPU connector for high-end CPU.
  • EMI Noise filter built-in design.
  • Over 70% efficiency at typical loading.
  • Compliance with the latest Intel standard ATX 12V V2.3.

Specs

Model RS350-PSARI3-US
Type Intel Form Factor ATX 12V V2.31
Dimension 150 x 86 x 140 mm

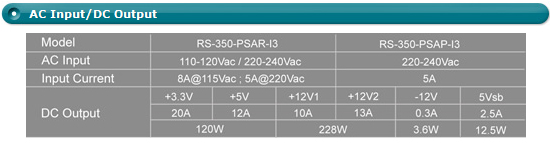

Input Voltage 110~120V/220~240V (Selectable)
Input Current 8A @ 115Vac / 5A @ 220Vac
Input Frequency Range 47 ~ 63 Hz
PFC None PFC
Power Good Signal 100 ~ 500 ms
Hold Up Time > 17 ms
Efficiency >70% Typically
MTBF >100,000 hrs
Protection OVP / OCP / OPP / SCP
Output Capacity 350 Watts
Operation Temperature 0~40 °C (Nominal Input Voltage)
Regulatory CE / GOST / C-tick / UL

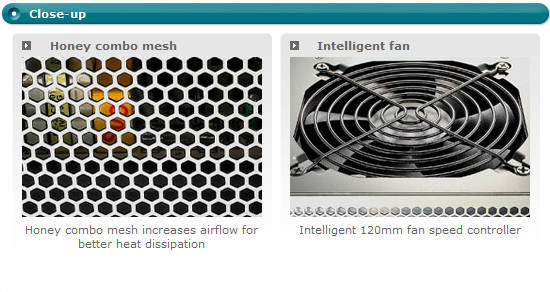

Fan 120mm fan

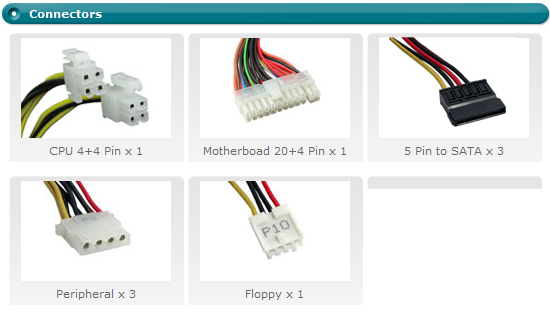

Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
4 Pin Peripheral x 3
SATA x 3
4 Pin Floppy x 1
Warranty 1 year
UPC Code 884102004735
