Silent Pro Gold 1000W
RSA00-80GAD3-US / RS-A00-80GA-D3


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Cooler Master offers another extensive range of power supplies that allows for a perfect fit for end users.

Silent Pro Gold Series – a brand new lineup of power supplies that meet the 80Plus Gold Standard with over 90% power efficiency.

Using patented technologies such as Heat Transfer Technology™ (HTT), Hyper Path™, and Hybrid Transformers™, the Silent Pro Gold sets a new standard in PSU excellence.
You must have Flash Player? 8 or above to view this content.
  • Flat modularized cables provide easy cable management leads to better airflow.
  • Compliance with the latest Intel standard ATX 12V V2.3.
  • Operation with intelligent fan speed control.
  • High reliability (MTBF> 100,000 hours).
  • Double Layer EMI Filter retrains noise and to avoid affect to users.
  • Integrating Active PFC with PWN combo controller while increase efficiency.
  • Multiple protection design (OVP/UVP/OPP/OTP/SCP/OCP).
  • Japanese-made capacitors.
  • Single +12V rail up to 98A.
  • Five-year warranty.




Specs

Model RSA00-80GAD3-US / RS-A00-80GA-D3
Type Intel Form Factor ATX 12V V2.3

SSI Form Factor EPS 12V V2.92
PFC Active PFC (0.99)
Input Voltage 90-264Vac (Auto Range)
Input Current 11 - 5.5 A
Input Frequency Range 47-63Hz
Output Capacity 1000W
Max. Output Capacity 1200W
Fan 135mm Ultra Silent Fan
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 90% typical
MTBF >100,000 hours
Protection OVP / UVP / OCP / OPP / OTP / SCP
Dimension 150 X 180 X 86 mm

5.9 x 7.09 x 3.4 inch
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory CE / FCC / UL / TUV / C-Tick / GOST / BSMI / CCC / KCC
Certification SLI / CrossFire / 80 Plus Gold

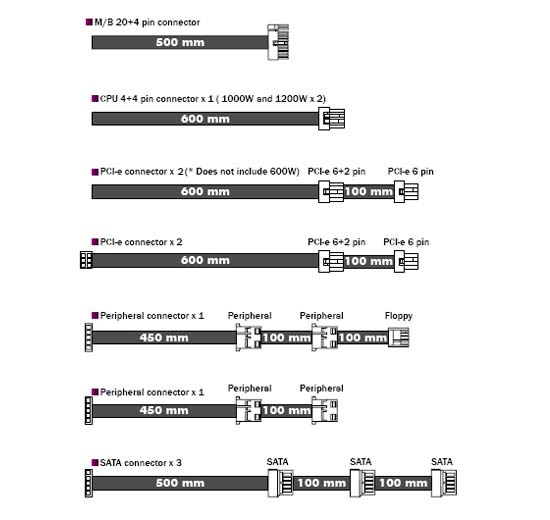

Connector M/B 20 + 4 pins x 1

CPU 4 + 4 pins x 2

PCI-e 6+2 pins x 4 / PCI-e 6 pins x 4 (One PCI-e 6+2 pins connector extends to one PCI-e 6 pins connector)

SATA x 9 / Peripherial 4 pins x 4

Floppy 4 pins x 1
Warranty 5 Years
UPC Code 884102008535
