V6
RR-V6SV-22PR-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

V6 follows in the footsteps of the revolutionary V8 and V10 CPU coolers from Cooler Master. Designed with a muscular engine look, the V6 fits nicely with any performance hardware. The V6 also features new mechanical structure that includes: V-shaped heatpipe array, asymmetrical aluminum fins (which are densely stacked for optimal cooling), a red LED fan with PWM speed control function, DynaLoop™ long life technology, and snap-on cover to conveniently add a second fan if needed.




Specs

Model RR-V6SV-22PR-R1
CPU Socket Intel Socket LGA 1155/1366/1156/1150/775

AMD Socket AM3/AM2+/AM2
Dimension 5.2 x 4.7 x 6.5" (131.5 x 120 x 165 mm)
Weight Net Weight: 2.2 lbs (1.00kg)

Gross Weight: 2.49 lbs (1.13kg)

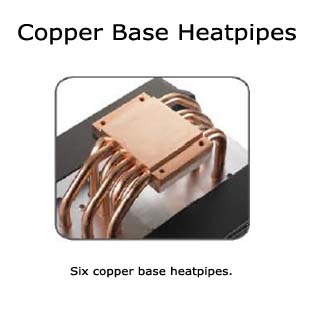

Heat Sink Material Copper base / Aluminum fins / 6 heatpipes
Heat Pipes Dimensions Ø6 mm
Fan Dimension 4.7 x 4.7 x 1" (120 x 120 x 25 mm)
Fan Speed 800 - 2200 RPM (PWM)
Fan Airflow 34.02 - 93.74 CFM
Fan Air Pressure 0.43 - 3.30 mmH2O
Fan Life Expectancy 40,000hrs / 25°C
Bearing Type DynaLoop™ Bearing
Connector 4-pins
Noise Level 15 - 38 dBA dBA Reference
Rated Voltage 12 VDC
Start Voltage 6 VDC
Operating Voltage 6 - 13.2 VDC
Rated Current 0.45A (0.7A Max.)
Input Power 5.4W (8.4W Max.)
Maximum TDP 200W
Warranty 2 years
UPC Code 884102008733
