X6 Elite
RR-X6NN-18PK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

It is a budget builder’s dream. Being amongst the best value for the dollar in CPU cooling, X6 Elite focuses less on aesthetic flair and incorporates minor changes to performance to achieve a well balanced setup. A unique angled base assists in compatibility and improving overall airflow within a chassis. Six heat pipes and a honeycomb fin structure assist in dissipating heat quickly to keep CPUs cool under high loads.

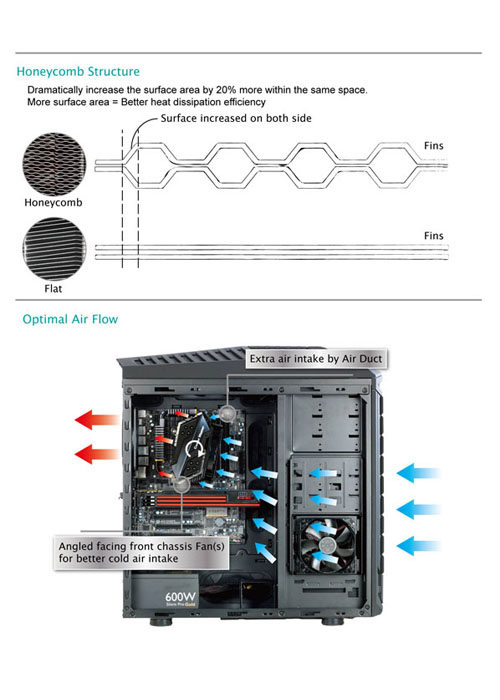

  • Unique honeycomb fin structure achieves maximum surface area coverage and cooling performance.
  • Heat sink base and fins angled for better cold air intake from chassis fans – creating optimal air flow and heat dissipation.
  • Ease installation with a quick-snap fan bracket design.
  • Extra air flow provided by a special air duct.
  • Wide range PWM fan (600 – 1800 R.P.M.) providing versatile performance while idle and at full load.

Specs

Model RR-X6NN-18PK-R1
CPU Socket Intel Socket:
LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775 *

AMD Socket:
FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
CPU Support Intel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron

AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™

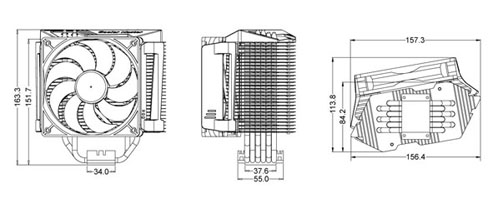

Dimension 157.3 x 113.8 x 163.3 mm (6.2 x 4.5 x 6.4 in)
Heat Sink Dimensions 156.4 x 84.2 x 151.7mm (6.2 x 3.3 x 6.0 in)
Heat Sink Material Copper Base / 6 Heat Pipes / Aluminum Fins
Heat Sink Weight 732g (1.61 lb)
Heat Pipes Dimensions ø6mm
Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Fan Speed 600 – 1,800 RPM (PWM) ± 10%
Fan Airflow 24 – 70 CFM ± 10%
Fan Air Pressure 0.3 – 2.14 mmH2O ± 10%
Fan Life Expectancy 30,000 hrs
Fan Noise Level (dB-A) 9 - 34.6 dBA dBA Reference
Bearing Type Long Life Sleeve Bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2A
Power consumption 2.64W
Maximum TDP 220W
Fan Weight 104g (0.23 lb)
Notice * Supplied accessories may differ by country or area. Please check with your local distributor for further details.
Warranty 2 years
UPC Code 884102015731
  • +
    • Click logo to read full review:
      Custompcreview.com: Silver Awesome Award
      Custompcreview.com : July 2012


      "The Cooler Master X6 Elite brings looks, quality, and performance at an acceptable price. While we’d still recommend those on the market for a budget cooler to stick with our favorite budget cooler of all time, the Hyper 212 Plus, there’s no reason not to spring for the X6 Elite – especially if you absolutely love the aggressive styling offered here."

      » Details
      Ninjalane.com: Furious 5 of 5
      ninjalane.com : March 2012


      "In this review we talked about how the unique design of the X6 Elite enabled the radiator to internally channel air and increase the overall surface area while still retaining the size of a compact tower heatsink.  This particular configuration does lend itself well to becoming a performance air cooler but we feel the performance is more towards sound reduction than raw overclocking."

      » Details
      Hitechlegion.com: Gold
      Hitechlegion.com : March 2012


      "The X6 Elite delivers everything we have come to expect from Cooler Master, in terms of design and build, and makes the smallest of performance sacrifices in order to scale down the size and greatly scale down the noise. The honeycomb fin design and angled mounting (once you get used to it) both absolutely do their job, as does the X6 Elite. If you are in the market for a good looking, quiet cooler with good cooling characteristics and excellent build and mount, you can’t go wrong with the X6 Elite."

      » Details
  • +
  • +
  • +
