Silent Pro Hybrid 850W
RS-850-SPHA-D3; RS850-SPHAD3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Silent Pro Hybrid Series, built for the those in need of high power that includes plenty of options for customization and noise control. Fully modular cables, extended cable lengths, exclusive built-in fan power ports, and an included 5.25” bay mountable fan controller make the Silent Pro Hybrid Series a superb choice for builders. This power supply series carries a 80 Plus Gold Certification.
You must have Flash Player? 8 or above to view this content.

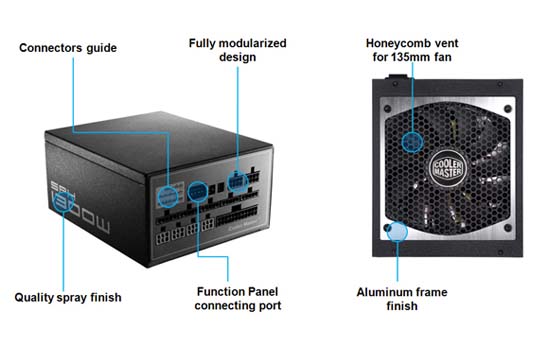

Fully Modular Cables
Flexibility of using only the cables needed for a cleaner system build

Silent Operation
135 mm Hydraulic Dynamic Bearing Fan for quieter operation

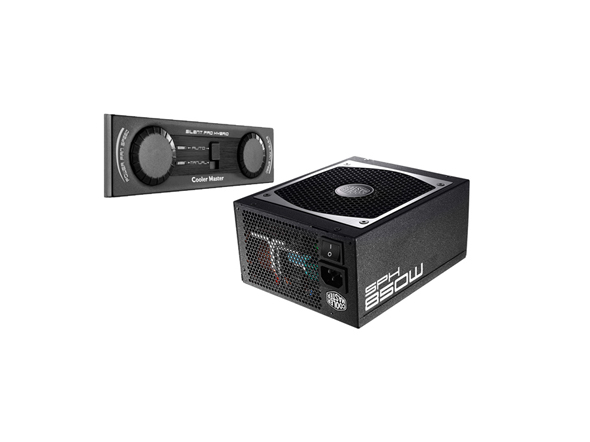

Function Panel Fan Speed Control
5.25”control panel for 135mm PSU and three system fans

Switchable Automatic / Manual mode Fanless Mode: Fanless operation with 135mm fan is at 0dB when loading is under 200W
Manual Mode: PSU fan speed can be adjusted manually from 3V-12V

Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 105A.

Double-Layer EMI Filter Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.



Unique Patented Technologies:
Hybrid Transformer™:
Specially design transformer to improve thermal and efficiency.
Patent design transformer mount with heat sink, the size was reduced by up to 25% than the traditional transformer providing lesser energy consumption, while conducting the heat for better overall efficiency.

HTT™ - Heat Transfer Technology:
Patent design “L” shaped heat sink layout.
This technology helps to guide the air flow along the heat sink to improve the air circulation for maximum performance.

Hyper Path™:
Patent design hyper link between IC and the relative components.
Patent energy conversion design path provides super efficient connection from the transformer to components. The signal can be transfer directly without any energy loss.

Intel Compliant ATX12V v 2.3 and EPS version 2.92 compliant.

Active PFC+ PWM Combo Controller Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.

Japanese Capacitors
High quality capacitors protecting equipment from capacitor leakage problem, also increasing the life-span of your equipment, especially at high temperatures.

Eco-friendly design: Erp Lot6 Ready!
A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode

Supports 4-Way SLI / CrossFire + Dual CPUs.
Able to run toughest rig with 4-way GPUs and dual CPUs without any hassle.

And More
Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
Multiple Protection Design (OVP / UVP / OCP / OPP / OTP / SCP)
High reliability with an MBTF of at least 100,000 hours of use.
Five Year Warranty.




Specs

Model RS-850-SPHA-D3; RS850-SPHAD3-US
Type Intel ATX 12V V2.3 & SSI EPS 12V V2.92
Dimension 150 x 180 x 86 mm
5.9 x 7 x 3.4 inch
Input Voltage 90-264V (Auto Range)
Input Current 9-4.5A
Input Frequency Range 47Hz-63Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time 17ms
Efficiency 90% Typically
MTBF 100,000 Hours
Protection OVP / UVP / OCP / OPP / OTP / SCP
Output Capacity 850W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / GOST / CE / C-Tick / UL / BSMI / CCC / FCC / KCC
Fan 135mm (Silent Hydraulic Bearings)
Certification 80 Plus Gold
Connector M / B 24 pins x 1
CPU 4 + 4 pins x 2
PCI-e 6+2 pins x 6
SATA x 12
Peripheral 4 pins x 5
Floppy 4 pins x 1
Fan cable 3 pins x 3
Warranty 5 years
UPC Code 884102012044
