Silent Pro M2 1500W
RSF00-SPM2D3-US; RS-F00-SPM2


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Built for quality and performance, the Silent Pro M2 1500W utilizes dual 12V rails that boasts a significant increase in available power output per power supply model over its predecessors. It translates into increased total amperage, high quality components to increase efficiency, environmentally friendly RoHS and ERP 2010 Certifications, and a long life 135mm fan with a durable Hydraulic Dynamic Bearing that decreases noise.

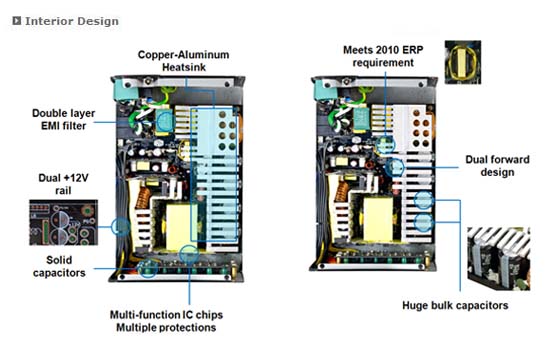

  • Copper-Aluminum Heat Sink
    This slick CM design incorporates an expansive flat surface area for superior heat conductivity out to the aero-dynamic fins, therefore removing heat at an unprecedented rate.
  • Silent Operation
    135 mm Hydraulic Dynamic Bearing Fan for quieter operation
  • Dual 12V Power Rails
    Dual 12 V Power Rails Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rails provides ample power and strong resistance to any overloading up to 70 and 55A.
  • Modularized Cabling
    Neatly arranged connectors on the rear plate connect to flat internal cabling improve installment facility while allowing for greater airflow through the PSU.
  • Intel Compliant
    Proficiently prepared to provide a stable power source and connectors for the latest ATX 12V v2.3 Intel processors.

  • Eco-friendly design: Erp Lot6 Ready!
    A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
  • And More
    - Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    - Double-Layer EMI Filter Dual protection from electromagnetic interference.
    - Multiple Protection Design (OVP/UVP/OPP/OTP/SCP)
    - High reliability with an MBTF of at least 100,000 hours of use.
    - Five Year Warranty.







Specs

Model RSF00-SPM2D3-US; RS-F00-SPM2
Type ATX 12V V2.3
Dimension 150 x 220 x 86mm (5.9 x 8.6 x 3.4 inch)
Input Voltage 90-264Vac (Auto Range)
Input Current 18 - 9A
Input Frequency Range 47 - 63Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 80 Plus Silver
MTBF 100,000 Hours
Protection OVP/UVP/OCP/OPP/OTP/SCP
Output Capacity 1500W
Operation Temperature 0-40°C(Nominal Input Voltage)
Certification 80 Plus Silver
Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC
Fan Silent HDB 135mm
Connector M/B 24 Pin Connector x 1
CPU 8 Pin x 2
PCI-E 8 Pin x 6
PCI-E 6+2 Pin x 6
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1
Warranty 5 years
UPC Code 884102015168
  • +
    • Click logo to read full review:
      Modders-inc - Must Have
      modders-inc.com : March 2013


      "You can see and feel the quality of the power supply all the way from the color to the amount of cables and connections you get. The Cooler Master M2 Silent Pro 1500 Watt Power Supply is a must have for those that are running a super high-end gaming PC, a number crunching- video rendering monster or at a data center where you are running your own multi-site server setup."

      » Details
      Aphnetworks.com
      Aphnetworks.com : February 2013


      "Overall, the Cooler Master Silent Pro M2 1500W is well built PSU for those who needs a power supply to jump start an airplane and power your computer all at the same time."

      » Details
      Rwlabs.com: Real Performance Award
      rwlabs.com : December 2012


      "The Build quality and features of this unit were outstanding you really will have a hard time finding something else on the market that has anything close to what the Silent Pro M2 offers - with 12 PCIe connections you would have a hard time finding enough GPUs to plug in.

      Voltage regulation of this unit was very impressive and one of the most stable I have ever seen personally. The 12v line only had a peak 30mv of ripple throughout testing while the 5v and 3.3v lines stayed well within spec at 5.01 and 3.31v at the end of testing, Efficiency bottomed out at 84% and averaged out at 86%."



      » Details
      legitreviews.com
      legitreviews.com : October 2012


      "The CM Silent Pro M2 1500W Power Supply Unit is nothing short of a mini powerhouse, with a power output capable of feeding no less than six typical home PCs. Clearly, this is not a product meant for the average Joe user but reserved for those who are planning to build really extreme computers, such as Quad SLI dual CPU systems. If you do possess or plan on building such a system, you would find the overall performance of the Silent Pro M2 1500W power supply more than satisfactory. "

      » Details
      Thinkcomputers.org 9/10
      thinkcomputers.org : October 2012


      "As far as performance goes the Voltage regulation on the unit was simply fantastic, staying under 1% on each of the rails, I’m not sure if we’ve seen a power supply that was that stable across the board. "

      » Details
      motherboards.org
      motherboards.org : August 2012


      Cooler Master Silent Pro M2 1500W Power Supply Unboxing & Overview







      » Details
      Techreaction.net: Gold Silicon Award
      Techreaction.net : July 2012


      "Overall, the Cooler Master Silent Pro 1500w PSU looks great all the way through. The modularity will help you keep your system installation nice and clean.  It is a good thing this PSU came with modular cables, because 1500W PSU’s have A LOT of cables! The soldering on the inside looks good, not cheap and messy."

      » Details
      Hitechlegion.com: Gold
      Hitechlegion.com : July 2012


      "Overall, the Silent Pro M2 1500W provides plenty of power and cable options for even the most hardcore of enthusiasts. The 135mm HDB fan and copper-aluminum heatsink provides a silent operation while the 5-year warranty, 80 Plus silver certification and a host of industrial grade power protection provides peace of mind."

      » Details
      Tweaktown: Must Have Best Features
      tweaktown.com : July 2012


      "As the only power supply on the market to offer 12 PCI-E connectors and on of a very few capable of moer than 1300W of power, this power supply is all about features.  Just knowing it is available tempts you to build a system with at least six GPU's."

      » Details
      3dgameman - 100% KICKASS
      3dgameman.com : July 2012


      "The 1500W is a monster and is designed for hardcore applications. The 3.3/5v rail is 150 watts and the 12v is 960 watts and the +3.3V & +5V rails are 30A each, the first +12V rail is 55A and second +12V rail is 70A. It has a hybrid modular design, 88% efficient, 80 Plus Silver certified and quiet fan."

      » Details
      lanoc.org
      lanoc.org : June 2012


      "So what do we think of the Silent Pro M2 1500W? Without a doubt Cooler Master built a monster power supply. The difference in PCI connections from our 1200 watt power supply to this monster is staggering and worth the price of admission alone."

      » Details
      Umlan.com
      Umlan.com : June 2012


      "I feel that Cooler Master has built a very solid power supply that will be the flagship of the Silent Pro M2 series. During testing I didn't run into any issues. The install went smoothly. The nylon mesh cables helped keep the leads nice and tidy inside the case and helped drastically with cable management. The flat modular connectors are a welcome site for me as I was able to route them pretty much any where I pleased."

      » Details
      Pro-clockers.com: Elite Hardware
      pro-clockers.com : June 2012


      "We have yet to receive a Cooler Master power supply that did not live up to its full potential. And we have several around the lab and in systems including my own that is rounding as strong as the day we install it. And we are positive those that have extreme gaming rigs that would need such power this new Silent Pro M2 1500W would be any different.

      According to all the numbers that Cooler Master throws around on the product page on this beast SLI’ing a couple of NVIDIA GTX 690 cards should not be an issue. And at the same time you don’t have to worry about your electricity bill compared to some of the older model power supplies due to the high level efficiency Silver rating. And if that is not enough the Silent Pro M2 entire series offers all the various forms of over, under, load and current protection."



      » Details
  • +
  • +
  • +
