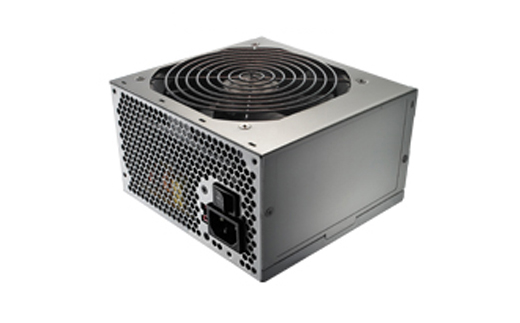

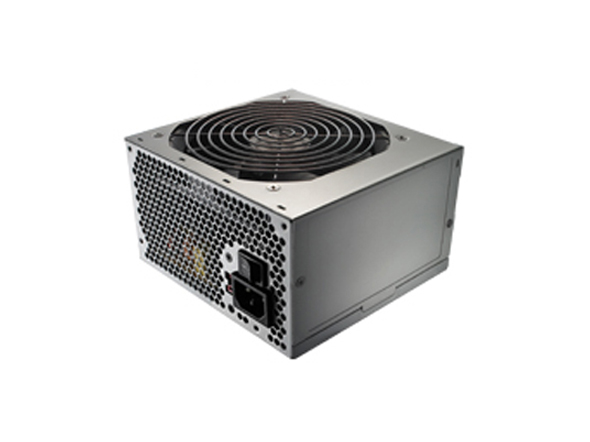

Elite Power 460W
RS460-PSARJ3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Elite power supplies deliver value while providing a durable power source for everyday computing. Using high performance components, Elite power supplies are compliant with most international standards including ATX 12V V2.3. Powerful dual +12V rails provide ample power for additional hard drives, and components.
  • Compliance with the newest Intel standard ATX 12V V2.3.
  • More than 70% efficiency at typical load operation.
  • High performance components design for better reliability.
  • Green power design to meet Energy Star and Blue Angel requirements.
  • Multiple protection design(OVP/OCP/OPP/SCP).
  • Support dual +12V1 and +12V2 outputs for higher power usage.
  • One 4+4 pin +12V CPU connector for high-end CPU.

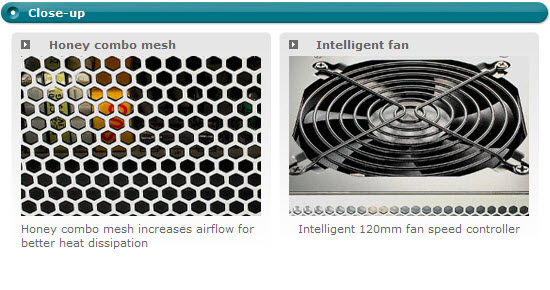

  • EMI & Noise filter built in design.

Specs

Model RS460-PSARJ3-US
Type Intel Form Factor ATX 12V V2.31
Dimension 150 x 86 x 140 mm
Input Frequency Range 47 ~ 63 Hz
PFC None PFC
Power Good Signal 100 ~ 500 ms
Hold Up Time > 17 ms
Efficiency >70% Typically
MTBF >100,000 hrs
Protection OVP / OCP / OPP / SCP
Output Capacity 460 Watts
Operation Temperature 0~40 °C (Nominal Input Voltage)
Safety CE / GOST / C-tick / UL
Fan 120mm fan
Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
4 Pin Peripheral x 3
SATA x 4
4 Pin Floppy x 1
6 Pin PCI-e Connector x 1
Warranty 1 year
UPC Code 884102004650
